YiNiTone SGQ-450K 100W UHF 400-480MHz Wide Band Duplexer N Connector 8 Cavity 8-Stop-Band Filiters N Connector Duplexer Signal Booster

SGQ-450K 100W UHF400-520MHz customizable frequency Portable Duplexer

note：

Be sure to note the required frequency point, otherwise the default TX：455.00±1.5MHz/RX：465.0±1.5MHz

Specification:

Product Number：SGQ-450K

Frequency Range：400-520MHz

Bandwidth：±1.5MHz

Frequency Spacing：10MHz

Isolation Loss：≤1.0dB

V.S.W.R：≤1.5

Isolation：≥75dB

Suppression：≥75dB

Impedance：50Ω

Max.power Input：80-150W(100W）

Standard Termination：N-Female

Operating temperature：-25℃-+55℃

Operating Humidity：5-95%

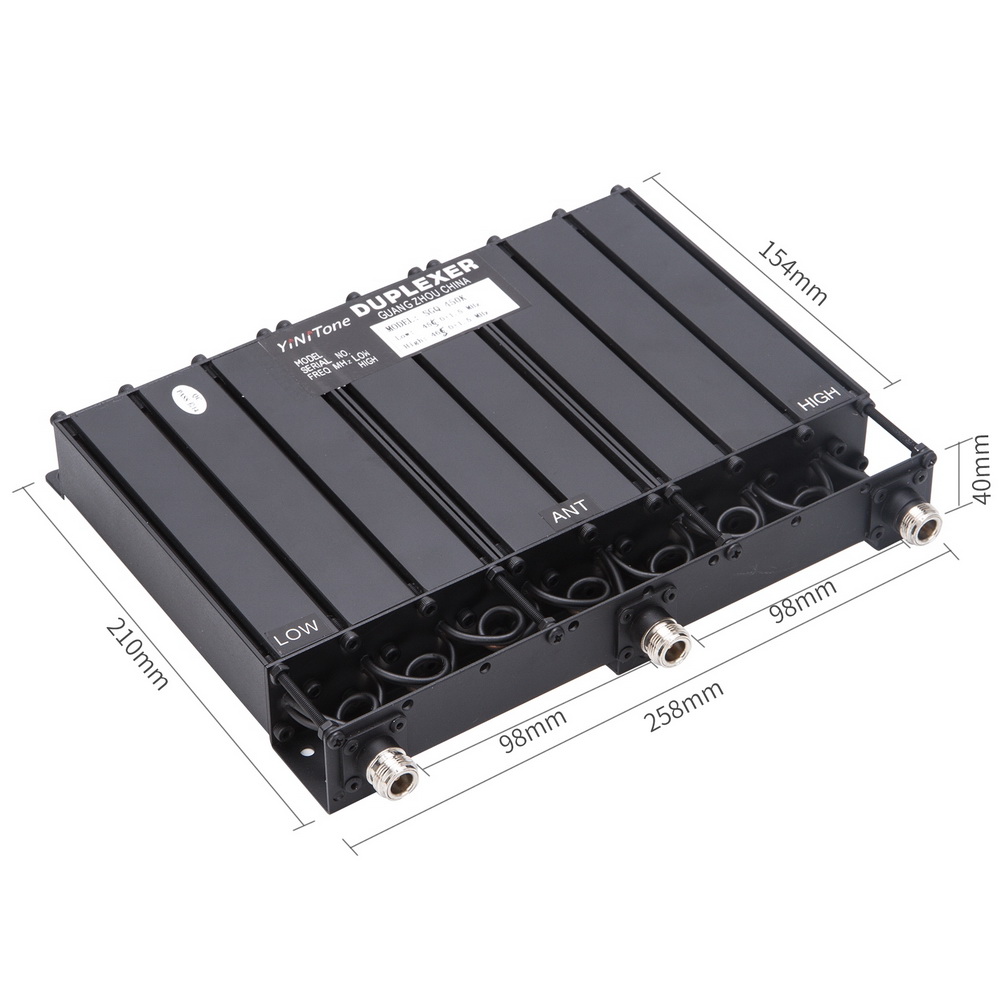

Dimensions：260×230×40mm

Weight：2.2kg

Package Including:

1*Portable Duplexer
